Features

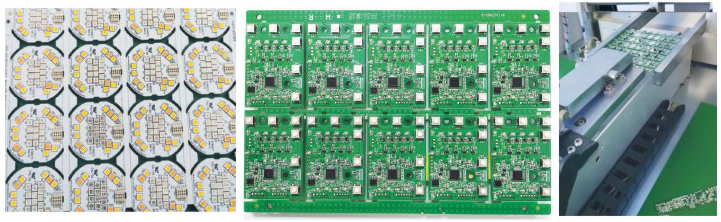

1 .This equipment is suitable for all kinds of PCBA panel splitting operations, especially precision circuit boards with components on one side. The height of the components on the PCBA board should be less than 5mm;

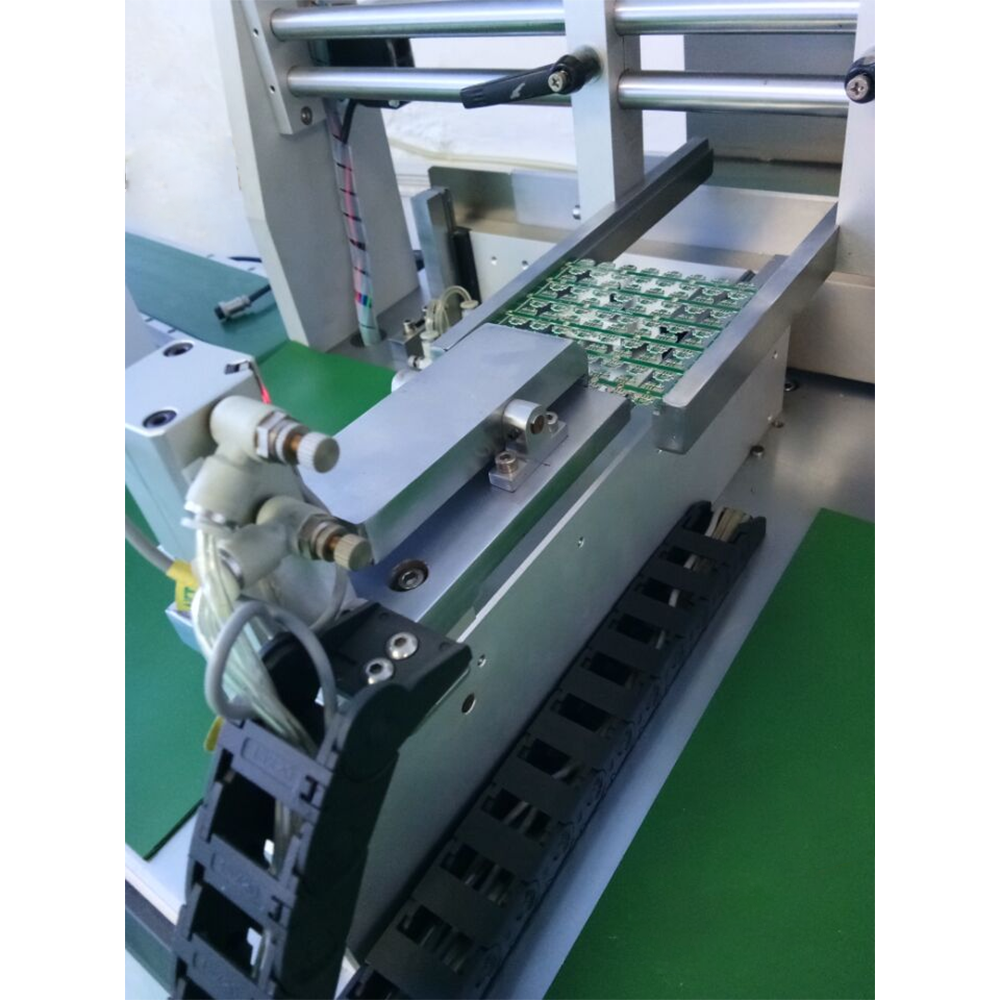

2.Using PLC man-computer exchange interface, using microcomputer control program to realize full automatic control of cutting times and cutting stroke, thus saving workers and improving efficiency;

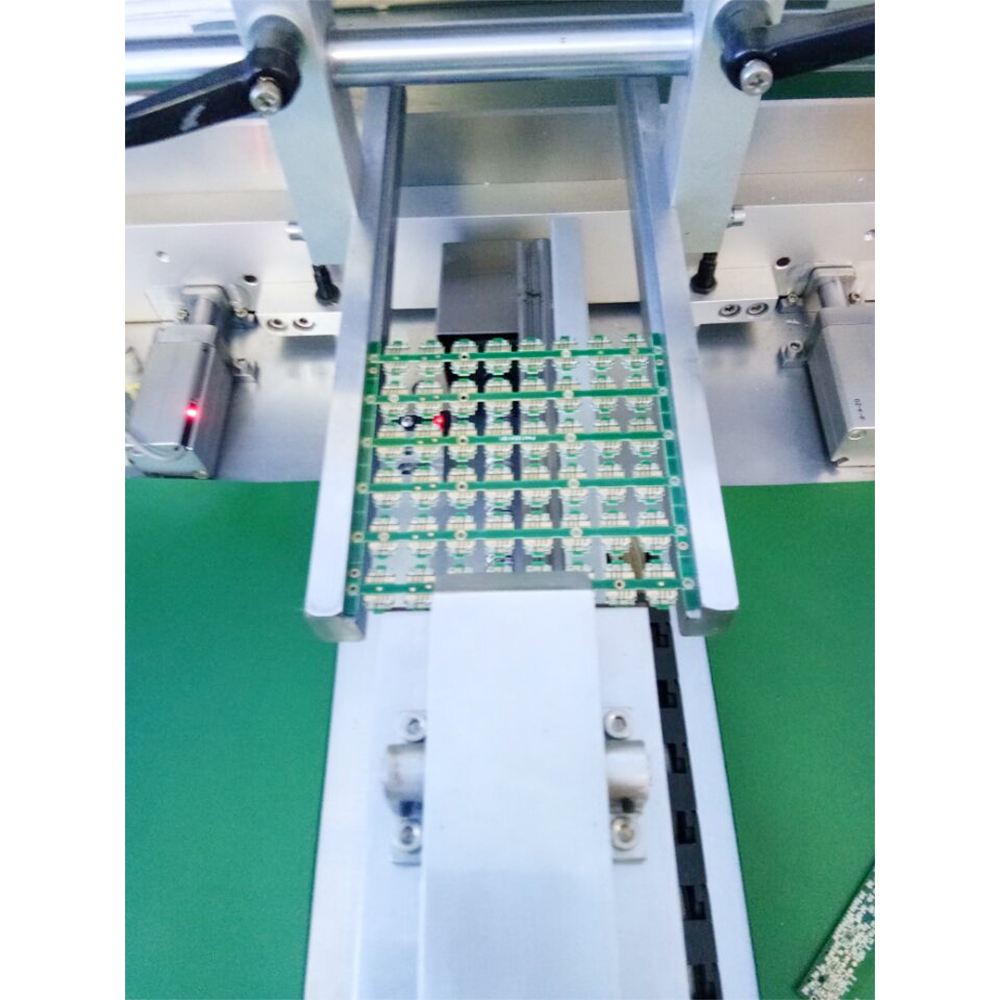

3.Fully automatic feeding and slitting of PCBA board, microcomputer automatic counting output is clear at a glance;
4.After the PCBA board is cut, it is directly transported to the inspection line through the conveyor belt to avoid secondary operations by workers;
5.The PCBA board moves during the cutting process, Scissor-type slitting, the slitting stress is less than 500μm/M, and the straight knife only moves up and down to ensure that the substrate electronic components are not damaged due to the movement;
6.Electric eye protection device to ensure safe production.
Technical parameter
| 使用電壓Service voltage | 220VAC 50HZ |
| 工作氣壓Working pressure | 0.6-0.8MP |
| 切割基板厚度Cutting substrate thickness | 0.3-3.5MM |
| 零件高度Part height | PCBA 限高 5MM (PCBA height limit 5mm) |
| 最大工作面積Maximum working area | 250mm寬(250mm wide) |
| 零件離切割線距離Distance from part to cutting line | >1.5MM |
| 工作方式operation mode | 自動(dòng)送料自動(dòng)切割 Automatic feeding and automatic cutting |
| 機(jī)器外形尺寸Machine dimensions | L*W*H=800*690*1200MM |
| 重量weight | 220KG |
| 存儲(chǔ)程式Storage program | >50groups |
| 附帶流水線Attached pipeline | 流水線最寬為250MM (The maximum width of the assembly line is 250mm) |
