Device Configuration

1. This device is suitable for the cut-board of the PCB board after the plug-in Work;

2. It can be equipped with functions such as automatic feeding, automatic cutting, automatic receiving, etc., and the machine operation is simple and fast;

3. The setting of various parameters fully ensure the continuity of board loading and cutting;

4. The main transmission components adopt precision stepping motors and servo motors, and the pneumatic components adopt international brands, which makes the repeat positioning accuracy high;

5. The whole machine adopts Mitsubishi PLC+WEINVIEW touch screen control,The operation interface is simple and convenient;

6. Equipment working voltage: 220 V 50Hz;

7. Efficiency: 25s/pcs (150*150mm, 4 cuts For reference);

8. The working area is protected by a safety photoelectric switch.

Machine cut-board action description

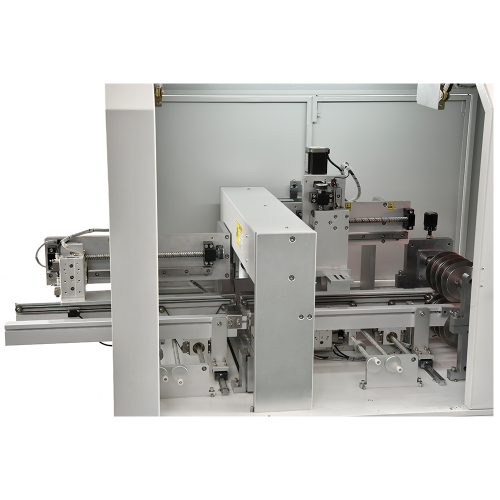

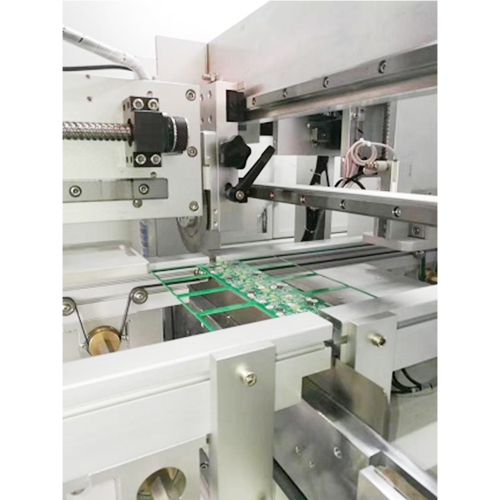

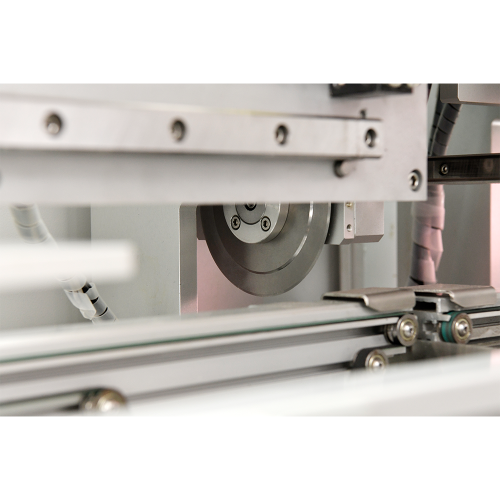

1. The PCBA board is sent out to the predetermined track through the upper board mechanism; the transportation track sends the PCBA to the top of the lower straight knife, the lower straight knife is raised, and the upper straight knife comes over to cut in the Y direction; follow the set cutting position and set Y All directions are cut completely.

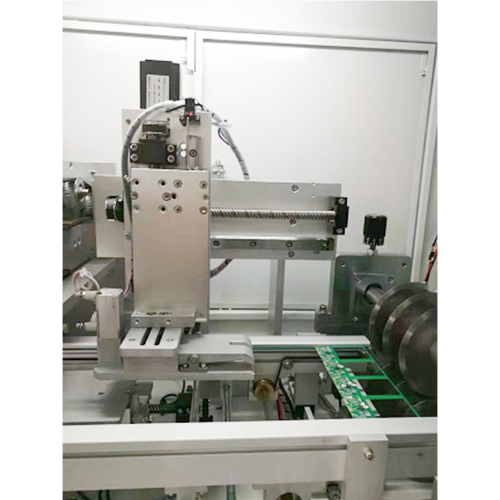

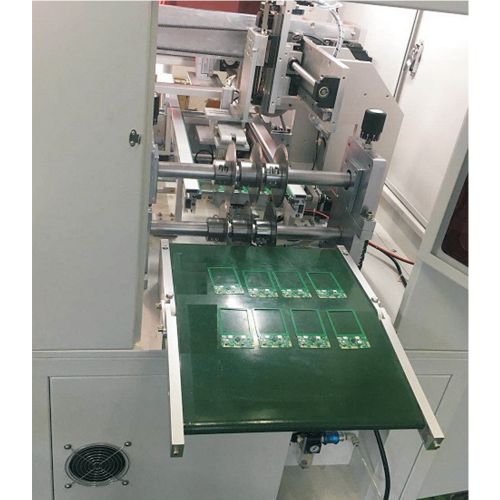

2. The PCBA cuted in the Y direction flows through the track to multiple groups of multiple knives for one-time slitting in the X direction.

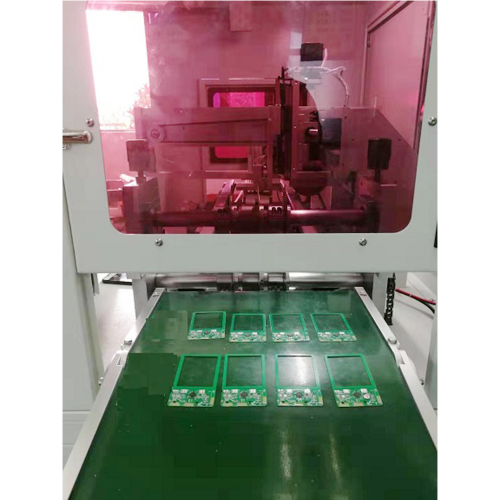

3. The cuted PCBA products fall onto the discharge conveyor belt, and flow into the next station through the conveyor belt.

Remarks: A piece of small circuit board that has been cut can be connected to the pick and place in tray machine.

Brief description of the machine

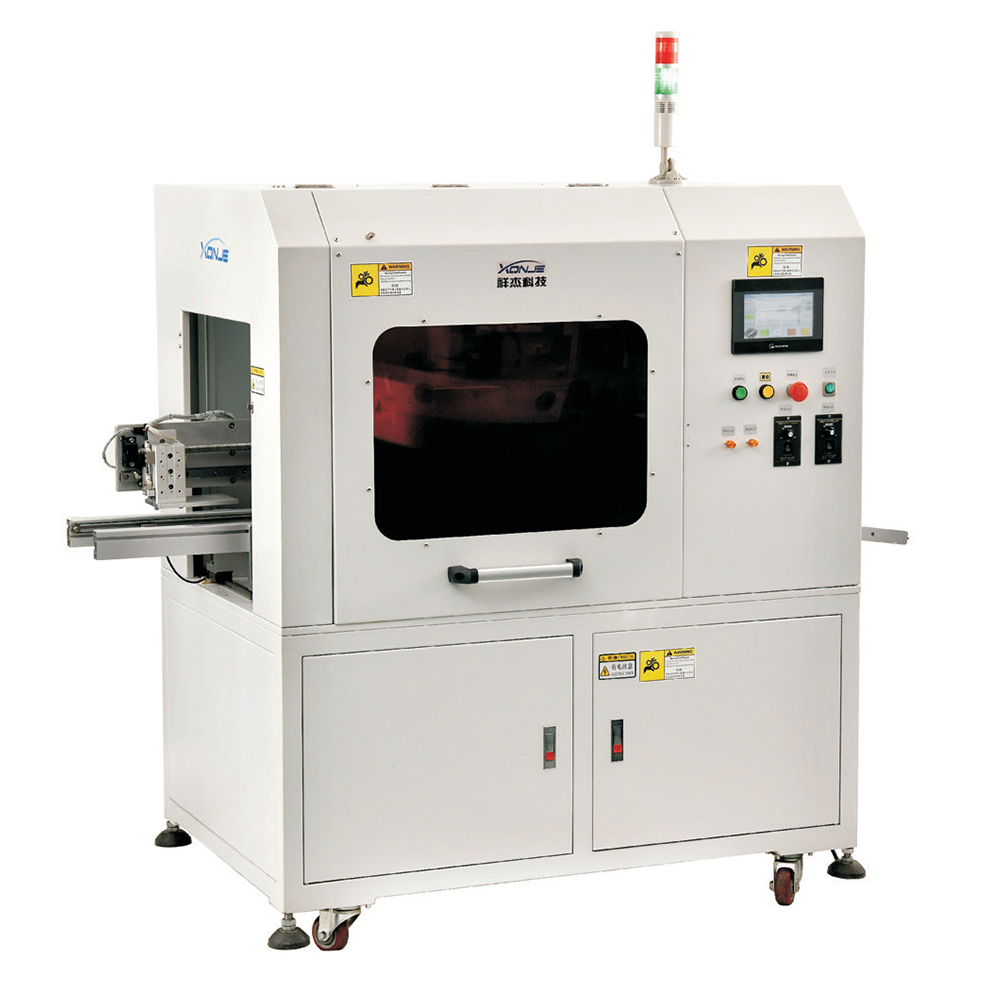

Fully automatic on-line V-slot splitting machine has further improved the quality of splitting; it can realize the automatic splitting of V-slot X and Y directions, and split aluminum substrates, copper substrates, FR4, fiberglass board is cut clean and free of lint, and the splitter can be connected to the assembly line to realize automatic splitting without manual placement; the split boards are transported through the assembly line, which greatly saves manpower and fully realizes unmanned splitting operations.

Features

I .The equipment adopts a single group of multi-knife automatic splitting, making different knives according to different products. And it is convenient and quick to change products;

2. The electrical control part can be selected in the human-computer interface, which is convenient to open or shield;

3. Human-machine interface, light curtain form and acrylic cover are used on the table to ensure safety;

4. Can be equipped with a dust suction device according to customer requirements;

5. Floor-standing structure is adopted as a whole;

6. The frame of the automatic line equipment adopting square steel welded frame,sheet metal sealing plate,surface baked steel paint;

7. The work surface of the equipment is made of 45# steel plate or A L6061 aluminum plate;

8. The equipment is suitable for all jigsaw panels with V grooves;

9. Cutting material: fiberboard, aluminum substrate, copper substrate;

10. Data monitoring system: boot time monitoring .capacity monitoring, equipment failure information and automatic rejection system, etc.;

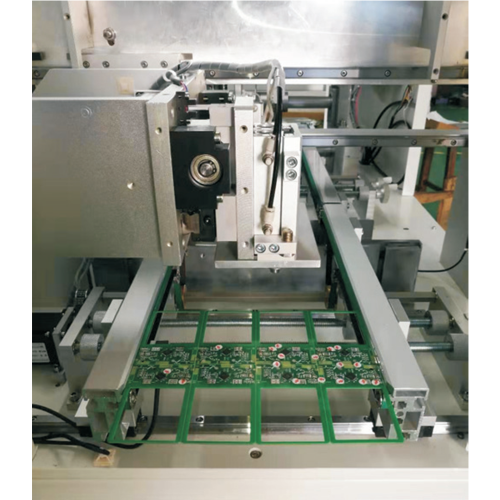

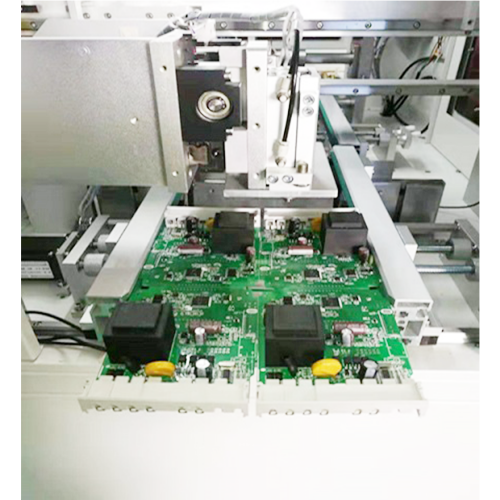

11 .Cut-board working method: use board feeder or direct suction cup to connect the assembly line to feed or suck PCBA into the sub-board mold. After the mold is installed, go through the set program route and follow the V-slot of the PCBA splicing board to finish. After slitting, the product and waste are sucked away by suction cups at the same time. The waste material is sent to the waste frame, and the product is sent to the tray on the assembly line and sent away. Fully realize unmanned production in cyclic operation.

Technical parameter

1.設備外形規格 Equipment appearance specifications	機器名稱Machine name	全自動在線V槽雙方向分板機Full automatic on-line V-slot two-way board splitting machine
	機器型號Machine model	XJVC-12A
	外形尺寸Overall dimension	LWH=17208001650MM
	外形appearance	立式vertical
	重量weight	600KG
	顏色colour	電腦白Computer white
2.設備供應要求 equipment supply requirements	電源供應Power supply	AC220V 2000W
	環境要求Environmental requirements	清潔干燥環境，避免潮濕或高溫Clean and dry environment and avoid humidity or high temperature
	工作氣壓/管徑Working pressure / pipe diameter	≥0.6MP/8MM
	零件離切割線最小距離Minimum distance from part to	≥1.5MM
	最大最小分板長度：Maximum and minimum partition	300300MM 1212MM
	進板口調節board inlet adjustment	前側固定，后側活動調節(Front fixed, rear movable adjustment)
	PCB板元器件最高高度Maximum height of PCB	PCB反面零件限高20MM,正面限高為35MM(The height limit of PCB reverse side parts is 20mm and the height limit of front side is 35mm)
3.設備軟件部分 equipment software	控制器Controller	PLC
	參數設置Parameter setting	根據V槽的尺寸觸摸屏直接輸入According to the size of the V-slot, it is input directly from the touch screen
	儲存模塊Storage module	可儲存50組程序It can store 50 groups of programs
	觸摸屏touch screen	威綸觸摸屏WEINVIEW touch screen
	光纖傳感器Optical fiber sensor	歐姆龍OMRON
4.刀片 blade	金屬屬性Metal properties	日本進口高速鋼High speed steel imported from Japan
	刀片角度Blade angle	10-30度（可選擇）10-30Degree (optional)
	使用壽命service life	5KM
	刀模精度Knife mold accuracy	0.1MM
5.主控分板系統 Main control cut-board system	分板效率Board splitting efficiency	25s/PCS（200150mm）標準速度切4刀為參照（25S / PCS (200 150mm) standard speed cutting 4 knives as reference）
	步進伺服器Step Servo	山濃/松下（SANNOON/PANASONIC）
	導軌絲桿Guide screw	上銀導軌絲桿HIWIN guide screw
	氣動配件Pneumatic accessories	AIRTAC/SMC
	流水線最大長寬Maximum length and width of pipeline	650mm*250mm（可訂制customizable）
	分板速度Board splitting speed	0-800mm/s
	吸盤機械手運動控制方式Suction cup manipulator motion control mode	步進馬達+導軌+皮帶傳動Stepper motor + guide rail + belt drive
	吸塵方式及效率Dust collection mode and efficiency	刀組下吸塵15Q0W（Dust suction under knife set 1500W）
	分板厚度Thickness of slitting board	0.4-3.5mm
6.其他功能 other functions	誤操作防護Misoperation protection	光柵傳感器及軟件三重防護Triple protection of grating sensor and software
	零件表面處理Part surface treatment	陽極電鍍Anodic plating
	安全防護safety protection	急停Emergency stop
	斷電斷氣功能Power off and gas cut-off function	有yes
	自檢功能Self checking function	開機時間監控，產能監控，設備故障信息及自動排異系統 Startup time monitoring, capacity monitoring, equipment fault information and automatic rejection system
	設備主要部分main part of the equipment	送板機（流水線），吸盤，三軸移動分板平臺，吸塵器 board loading machine (assembly line), suction cup, three-axis moving board splitting platform, vacuum cleaner
	工作方式operation mode	自動機械手在線分切送板Automatic manipulator on-line cutting and feeding board
	適用范圍Scope of application	插件/貼片后PCB板的雙方向V槽Two-way V-slot of PCB after plug-in / SMD
